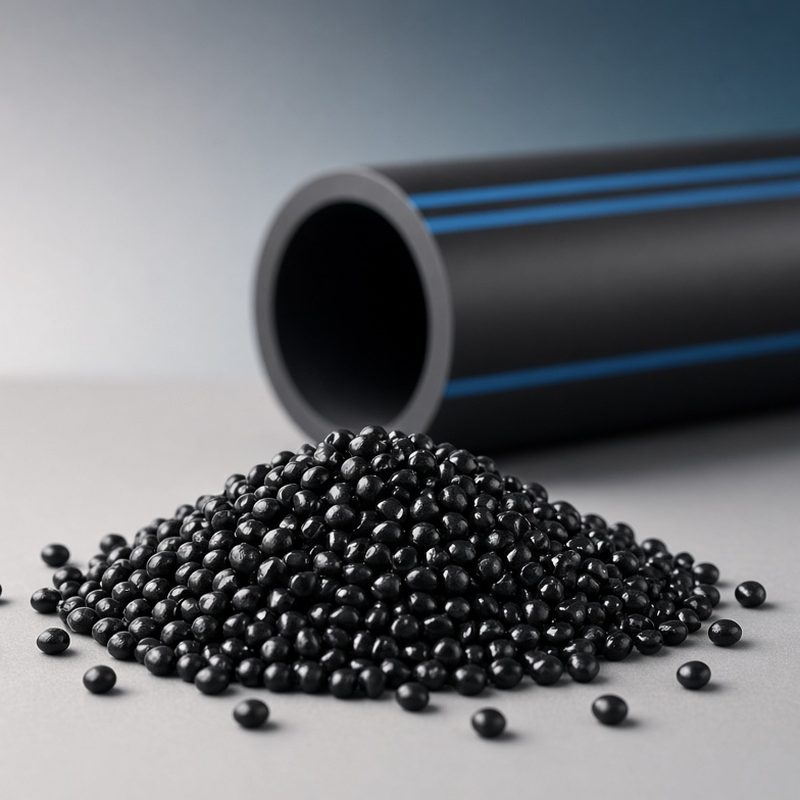

PE100 Black – HDPE Pipe Compound
PE100 Black is a bimodal high density polyethylene pipe compound with 1-butene comonomer and finely dispersed carbon black.
PE100 Black is a bimodal high density polyethylene pipe compound with 1-butene comonomer and finely dispersed carbon black. It delivers top-quality PE100 pressure pipes for water and gas at higher pressures or thinner walls than PE80, with long-term UV protection.
PE100 Black Technical Data
| Property | Test Method | Unit | Typical Value |
|---|---|---|---|
| Physical | |||
| Melt Flow Rate (190 °C / 5 kg) | ISO 1133 | g/10 min | 0.22 |
| Melt Flow Rate (190 °C / 21.6 kg) | ISO 1133 | g/10 min | 6.2 |
| Density | ISO 1183 | g/cm³ | 0.957 |
| Mechanical | |||
| Stress at Yield | ISO 527 | MPa | > 23 |
| Strain at Break | ISO 527 | % | > 500 |
| Charpy Notched Impact (23 °C) | ISO 179 | kJ/m² | > 23 |
| ESCR (F50, 10% Igepal) | ASTM D1693 | h | > 5000 |
| Pipe | |||
| MRS Classification | ISO 9080 | MPa | 10 |
| Notched Pipe Test (80 °C, 4.6 MPa) | ISO 13479 | h | > 500 |
| Thermal | |||
| Oxidation Induction Time (210 °C) | ISO 11357 | min | > 30 |
| Pigmentation | |||
| Carbon Black Content | ISO 6964 | % | 2.0 – 2.5 |
| Carbon Black Dispersion | ISO 18553 | grade | < 3 |
Typical values, not to be construed as specification limits. Download the PE100 Black technical data sheet (PDF).
Key Features
- PE100 black compound
- Excellent slow-crack-growth resistance
- UV protected
- OIT > 30 min

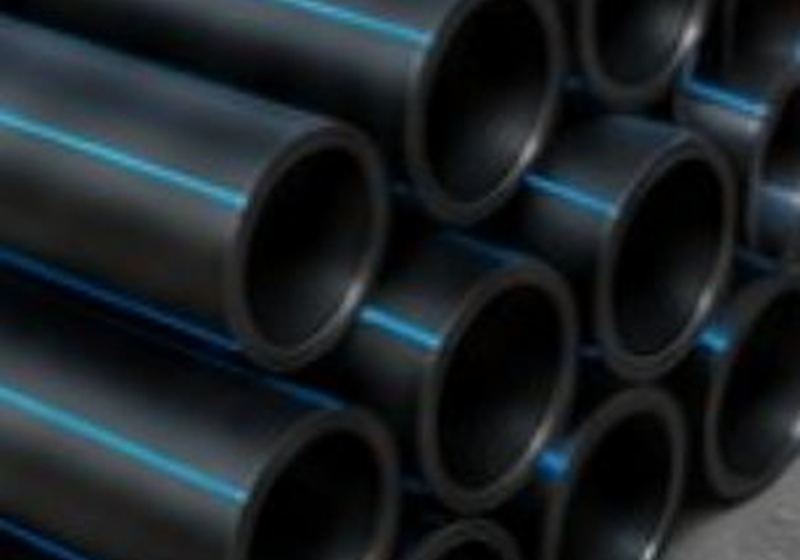

Applications
Typical applications of PE100 Black:
Processing Guide
- Process: Pipe extrusion
- Extrusion temperature: 190 – 220 °C
- Pipe standard: ISO 4427 / EN 12201

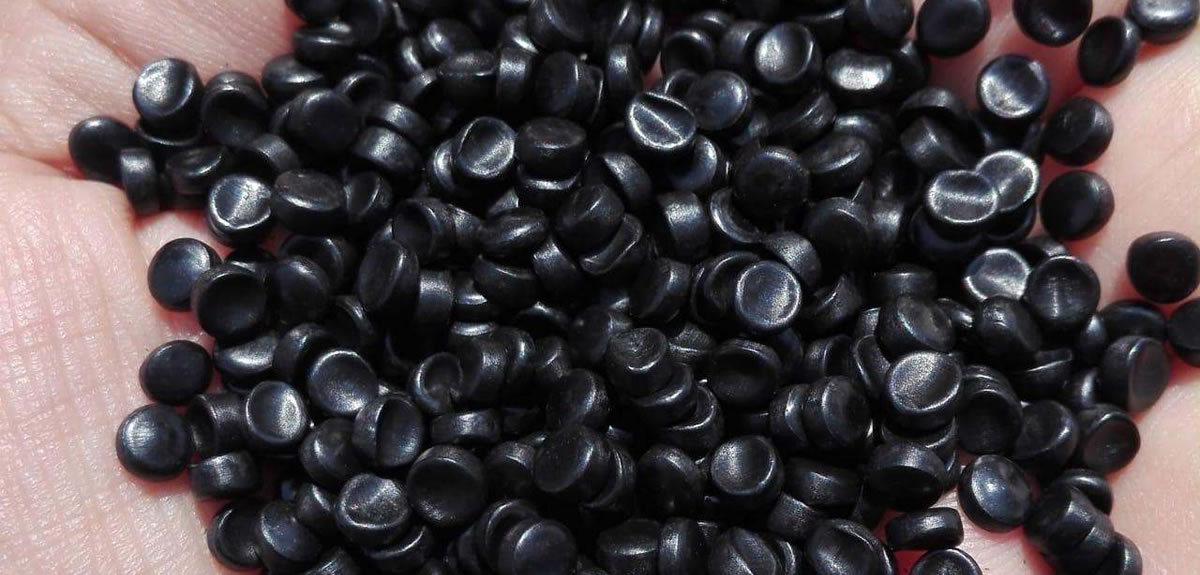

- Form: Black pellets
Packaging & Supply
- 25 kg PE / woven bags; palletised or jumbo bags on request
- 20′ / 40′ container loading
- Delivery ex-factory or at border, 100% pre-shipment inspection and full export documentation
PE100 Black Pipe Compound FAQ
What is the difference between PE100 and PE80?
PE100 has a minimum required strength (MRS) of 10 MPa versus 8 MPa for PE80. For the same pressure rating, PE100 pipes can have thinner walls, or for the same wall they can carry higher pressure.
Why use a pre-compounded black PE100 instead of natural resin plus masterbatch?
In a pre-compounded grade the 2.0–2.5% carbon black is dispersed at the producer, giving consistent UV protection and dispersion (< 3) that meets pipe standards without extra dosing equipment or the risk of poor mixing.
Which standards can pipes made from this compound meet?
The compound is intended for pressure pipe to ISO 4427 / EN 12201 for water and comparable gas pipe standards. Final certification depends on the pipe producer’s testing.
What test results can you provide?
Each lot comes with a certificate covering MFR, density, carbon black content and dispersion; OIT and other values are available on request.
What are the recommended extrusion settings?
Typical extrusion temperatures are 190–220 °C. Dry the material if it has absorbed moisture during storage.
Request a Quote
For today’s price, samples or a full TDS pack for PE100 Black, contact our sales team on WhatsApp +98 912 640 4020 or use the enquiry form on this page.
Request a Quote
Tell us the grade, quantity and destination – we reply with price, availability and delivery terms within one business day. Samples and full export documents are available on request.
