HDPE EX5 – Blown Film Grade

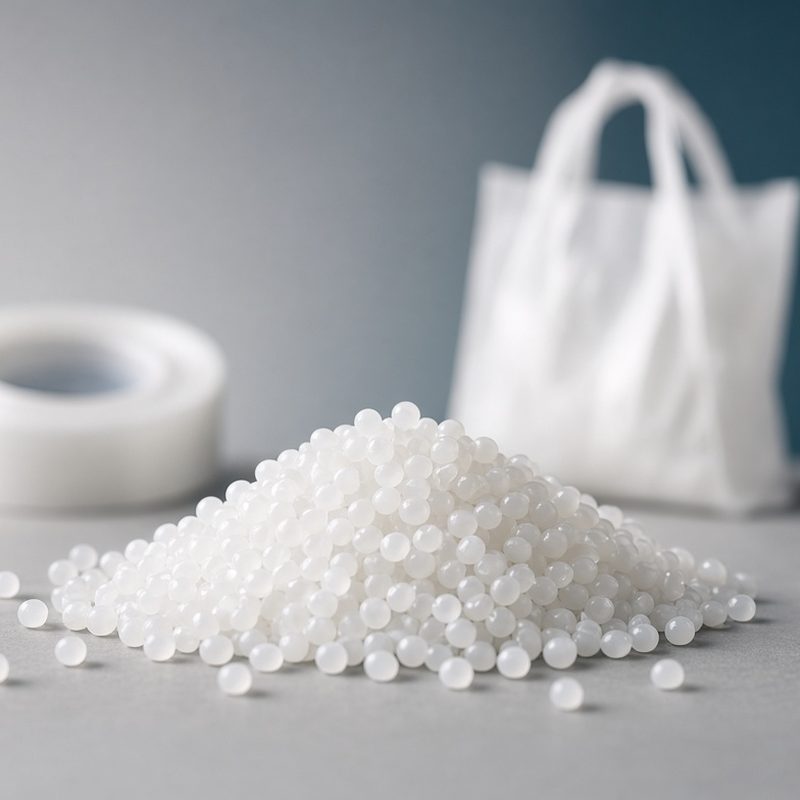

HDPE EX5 is a high-molecular-weight, bimodal high density polyethylene with 1-butene as comonomer.
HDPE EX5 is a high-molecular-weight, bimodal high density polyethylene with 1-butene as comonomer. It combines good stiffness and tenacity with a low gel level, producing strong blown films with a paper-like feel for bags and wrapping.
HDPE EX5 Technical Data
| Property | Test Method | Unit | Typical Value |
|---|---|---|---|
| Physical | |||
| Density (23 °C) | ISO 1183 | g/cm³ | 0.949 |
| Melt Flow Rate (190 °C / 5 kg) | ISO 1133 | g/10 min | 0.28 |
| Melt Flow Rate (190 °C / 21.6 kg) | ISO 1133 | g/10 min | 8 |
| Flow Rate Ratio (21.6 / 5) | — | — | 29 |
| Mechanical | |||
| Stress at Yield | ISO 527 | MPa | 24 |
| Stress at Break | ISO 527 | MPa | 35 |
| Hardness, Shore D | ISO 868 | — | 60 |
| Thermal | |||
| Brittleness Temperature | ASTM D746 | °C | < −80 |
| Film (20 µm) | |||
| Tensile Strength MD / TD | ISO 527 | MPa | 45 / 40 |
| Elongation MD / TD | ISO 527 | % | 400 / 450 |
| Elmendorf Tear MD / TD | ISO 6383-2 | mN | 200 / 450 |
| Dart Drop Impact | ASTM D1709 | g | 220 |
Typical values, not to be construed as specification limits. Download the HDPE EX5 technical data sheet (PDF).
Key Features
- High molar mass film grade
- Good stiffness & tenacity
- Low gel level
- Food-contact grade
Applications
Typical applications of HDPE EX5:
Processing Guide
- Process: Blown film extrusion
- Melt temperature: 200 – 230 °C
- Blow-up ratio: ≈ 4 : 1
- Film thickness: 10 – 200 µm
Packaging & Supply
- 25 kg PE / woven bags; palletised or jumbo bags on request
- 20′ / 40′ container loading
- Delivery ex-factory or at border, 100% pre-shipment inspection and full export documentation
HDPE EX5 FAQ
What is HDPE EX5 used for?

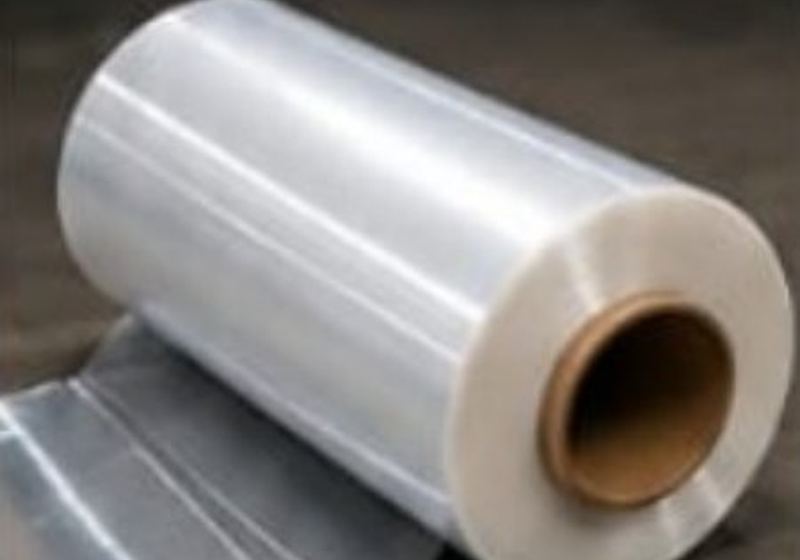

HDPE EX5 is a bimodal HDPE film grade for strong blown film with a paper-like feel: counter bags, carrier (T-shirt) bags, wrapping film and general blown film from about 10 to 200 µm.
How does HDPE EX5 compare with HDPE F7000?
Both are HDPE blown-film grades. EX5 is a bimodal butene grade with a dart impact of about 220 g at 20 µm and a low gel level, favoured for tough bags and wrapping film. F7000 is chosen when the priority is very thin film (down to about 6 µm) at high line speed. Many converters blend either grade with 10–30% LLDPE for extra toughness.
What processing conditions are recommended?
Typical melt temperature is 200–230 °C with a blow-up ratio of about 4 : 1 on high-stalk (neck) HDPE film lines.
Is HDPE EX5 suitable for food contact?
Yes – EX5 is supplied as a food-contact film grade. Ask us for the lot certificate of analysis and compliance statement with your order.
What is the minimum order and how is it packed?
One container (about 25 t) in 25 kg bags on pallets or in jumbo bags, delivered ex-factory or at the Iranian border, with full export documents.
Request a Quote
For today’s price, samples or a full TDS pack for HDPE EX5, contact our sales team on WhatsApp +98 912 640 4020 or use the enquiry form on this page.
Request a Quote
Tell us the grade, quantity and destination – we reply with price, availability and delivery terms within one business day. Samples and full export documents are available on request.
